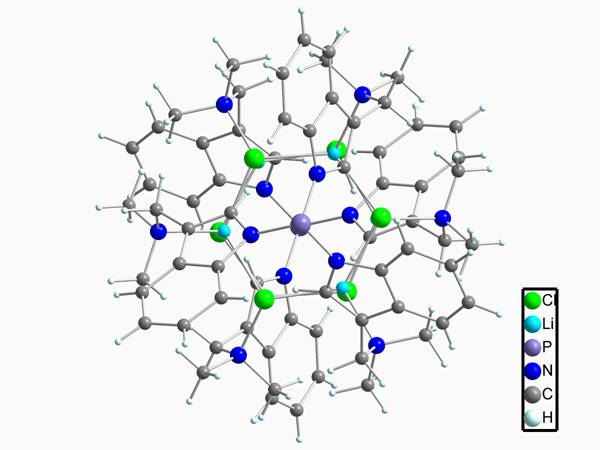

Crystallography

Small Molecule Diffractometer

X-Ray Single Crystal Diffractometer
Bruker Apex Duo

apex

  • Cu-radiation for absolute configuration and protein screening
  • Mo-radiation for high throughput and charge density
  • Mo-sealed tube with Triumph monochromator
  • Fast and fully-automated wavelength switch
  • Cu-IμS microfocus tube with multilayer provides up to 30 times the intensity compared to graphite monochromated sealed Cu-tube

Reserve Instrument

 Powder X-Ray Diffractometer

PANalytical X'Pert Pro MD
(Dragon)

drgn

  • Temperature range -150° to 400° C
  • Capillary tube available for air sensitive materials or small samples
  • Phase identification of solid materials
  • Crystallite size
  • Preferred orientation
  • Quantitative analysis
  • Symmetric scan (theta-2 theta)
  • Asymmetric scan (2 theta)
  • Samples can include:
    • Powders
    • Thin Films
    • Polymers

Reserve Instrument

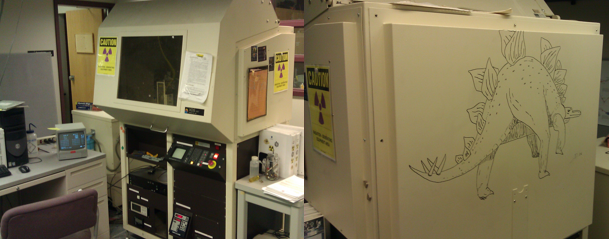

Scintag XDS-2000
(Dinosaur)
dnsr
  • Temperature range RT-1000° C
  • Phase identification of solid materials
  • Crystallite size
  • Preferred orientation
  • Quantitative analysis
  • Symmetric scan (theta-2 theta)
  • Asymmetric scan (2 theta)
  • Samples can include:
    • Powders
    • Thin Films
    • Polymers

Reserve Instrument

Macromolecular Diffractometer

High Brilliance X-Ray Generator

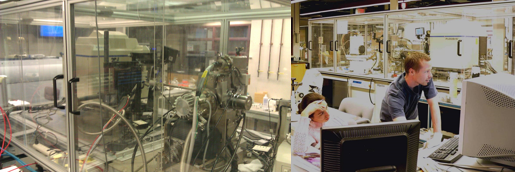

Rigaku FRE
fre
  • R-AXIS IV and Saturn 92 CCD detectors
  • Cu K alpha source
  • Oxford700 Cryostat with optional ability for He data collection down to 50 K
  • Standard data processing software available

Reserve Instrument

Robotics

Genomic Solutions Robotic System
Honeybee 963
Genomic Solutions Robotic System
  • Crystal screening
